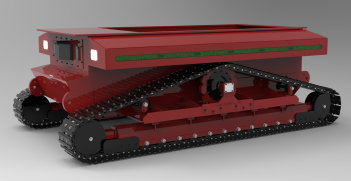

The Forager Panzer-T is an electric-powered omni-chassis Autonomous Mobile Robot (AMR) designed for reliable operation and safety. It features a distributed processing system that includes a CPU module, an Inertial Navigation System (INS) module, a quad camera module, a dual motor module, and a safety sensor/marker module, providing comprehensive 360° safety coverage. The 900 MHz mesh radio network facilitates manual control and monitoring, while two payload modules ensure efficient operation. This robot version is equipped with metal tracks for enhanced mobility and offers optional add-ons, including front and rear LED lights, front and rear cameras, forward radar, and forward LiDAR. The payload control modules are automatically configured for the installed payload during the final power-up stage, further improving the Forager Panzer-T's safety and reliability. The unit can have different functioning payloads, i.e., dump body, disaster recovery multi-arm, and excavator.

Electric Powered, 48VDC 150Ah battery system with 6-hour run time.
Length: 83.0 inches, Height: 28.5 inches, Width: 47 inches,
Deck 28.0 inches from the ground, Ground clearance: 8.0 inches
Track Width: 8”, Max Ground Pressure: 2.0psi, Speed: 2.5mph
Vehicle Weight: 1500lbs., GVW: 2300lbs.

Forager attachments will mount on all three Forager omni-chassis

Forager-T has an armored tunneling arm and extra battery banks.

Forager-T with Boom Arm
